Introduction
Airflow type dryer, also called pipeline type drier, adopting twice circulate heating system, is our newly advanced drying equipments, and shows the features of automatic feeding, high hot air flow speed, fully mixing of airflow and materials, big drying strength, lower dust and bigger drying capacity. Moisture in the raw material of less than 40% can be dried one time to meet the requirement for making wood briquette, which greatly reduced the labor intensity compared with commonly used drier.
Application
1.Size of raw material: less than 5 mm
2.Moisture of raw material: less than 40%
Technical Parameters
| Model | SLD-1 | SLD-2 | SLD-3 |
| Motor Power | 4 kw | 5.5 kw | 7.5 kw |
| Capacity (kg/h) | 200-300 | 600-1000 | 1000-1400 |
| Feeding Size | 3-5 mm | 3-5 mm | 3-5 mm |
| Weight | 1200 kg | 1600 kg | 2100 kg |

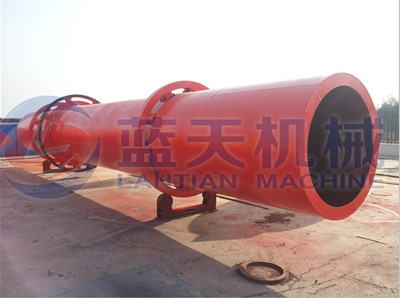

Sawdust Rotary Dryer
Sawdust rotary dryer is used to dry the high moisture wood for a large amount output, wood dryer is a kind of machine with a rotating cylinder which is a little bit incline. It is widely used in building material, metallurgy, chemical industry, cement to dry the slag, limestone, coal powder, clay, etc. It is simply structure, polished manufacture, high capacity, low consumption, convenient transportation and so on.
Also, this machine can be used to dry some other materials, such as coal, sand, peat,
cassava slag, mineral powder, sludge, etc.
Application
1.Used to dry big amount sawdust
2.Size of wood should less than 1 cm
Technical Parameters
| Model | Diameter(mm) | Length (m) | Motor Power | Capacity (kg/h) |
| Φ 0.6*8 | Φ 600 | 8 | 4 kw | 800-1000 |
| Φ0.8*10 | Φ 800 | 10 | 4 kw | 1000-1500 |
| Φ1.0*10 | Φ 1000 | 10 | 5.5 kw | 1500-2000 |
| Φ1.2*12 | Φ 1200 | 12 | 11 kw | 2000-2500 |
| Φ1.5*12 | Φ 1500 | 12 | 15 kw | 2500-3000 |
| Φ1.8*14 | Φ 1800 | 14 | 30 kw | 3000-4000 |
| Φ2.2*18 | Φ 2200 | 18 | 37 kw | 4000-5000 |
